Phantomexposure Instrument · 6-op FM / Vector

Ghost Vector

Load TG-33, SY22 and TG-77 voices and play them on engines built for each, then step over into Ghost Vector's own four-corner vector synth.

Ghost Vector — TG-33 view — the vector diamond and vector sequence Ghost Vector — TG-77 view — an AFM element's routing and envelope Ghost Vector — Play view — two FM and two sample corners Ghost Vector — Advanced › Corners — algorithm, filter and LFO plates
TG-33 view — the vector diamond and vector sequence 01/04
  • VST3 · CLAP · AU
  • Windows · macOS · Linux
  • TG-33 / TG-77 import
  • 6-op FM + samples
  • 108 presets

New in 0.10.10TG-33 and TG-77 modes with bank import, editing and .syx export, a new interface with Play, TG-33, TG-77 and Advanced views, MIDI learn, A/B, and about half the memory per instance.

Ghost Vector reads voice and bank dumps from the TG-33, SY22 and SY35, and from the TG-77 and SY77, as .syx or .mid files. TG-33 mode plays the two AWM and two FM tones of each voice and follows its recorded vectors; TG-77 mode covers all eleven element modes and drum sets. Edit a voice and save it back out as .syx.

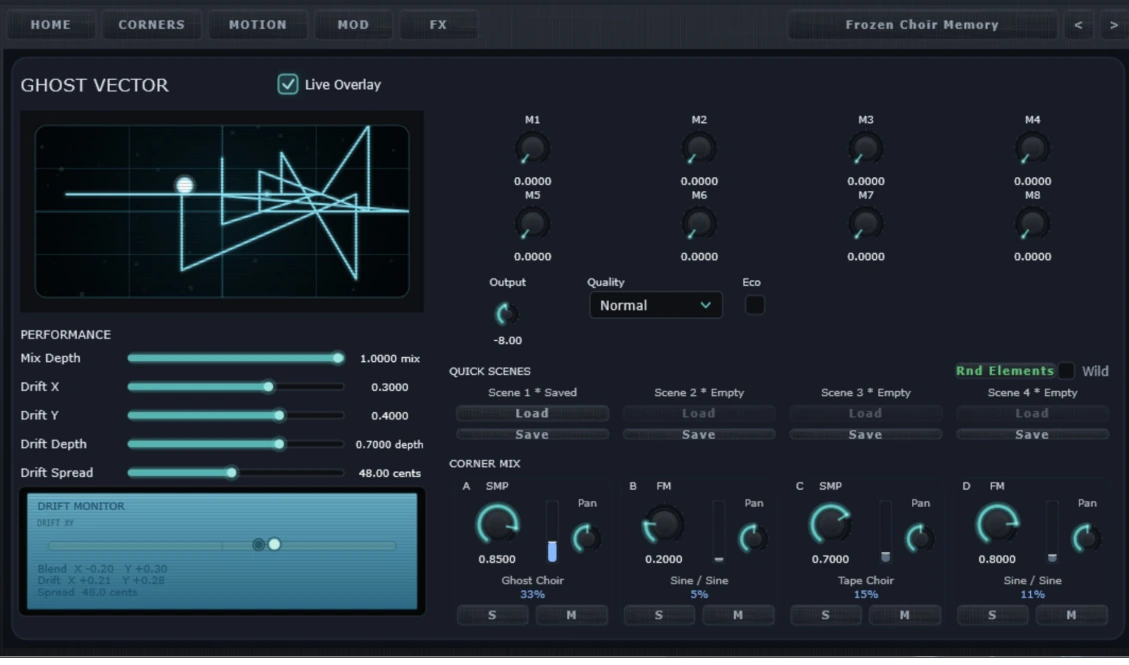

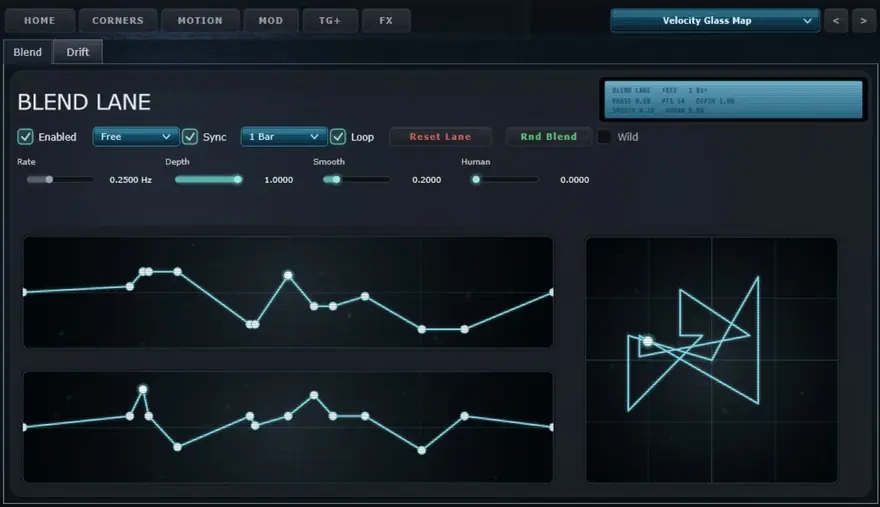

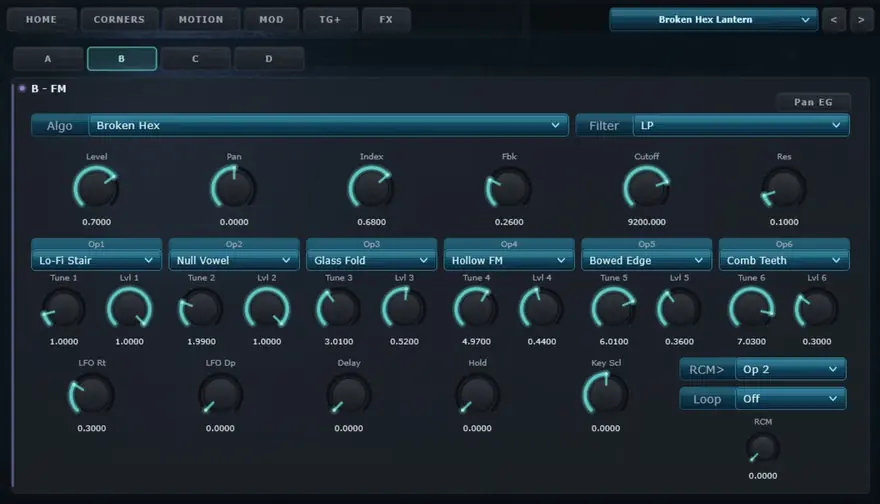

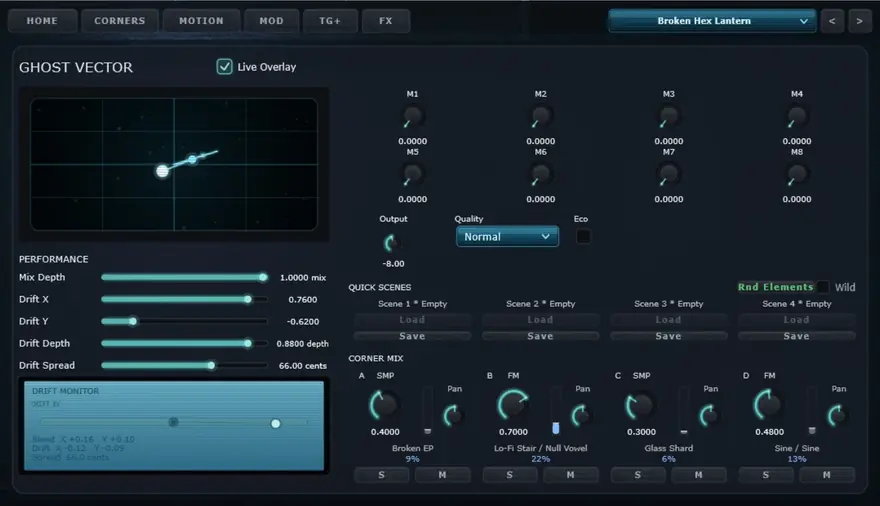

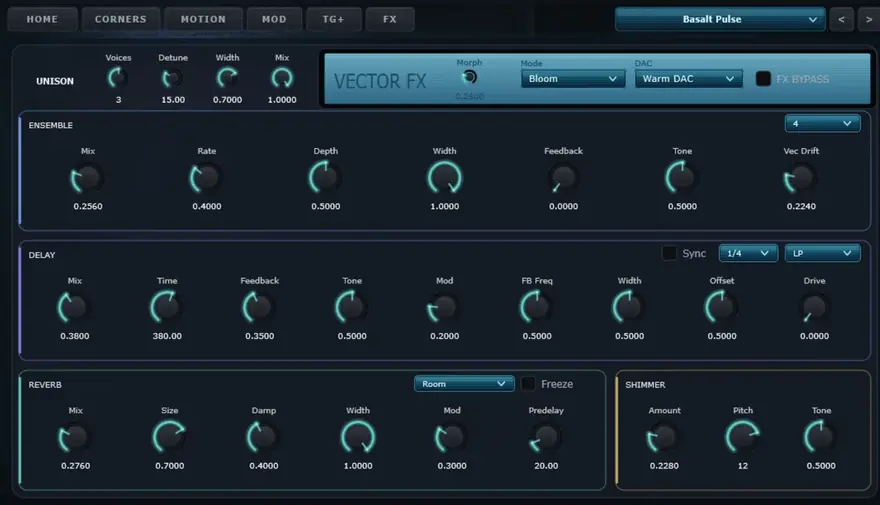

Outside the TG modes it is a vector synth of its own: two sample corners and two six-operator FM corners on a vector field, with Blend and Drift lanes moving the sound between them. 90 algorithms, 32 operator waves, 48 built-in sample sources or your own audio, ensemble, delay, reverb and shimmer.

Ghost Vector ships no Yamaha samples, ROM data or factory voices; the sample waves are its own stand-ins, so voices sound related to the hardware rather than identical. Yamaha, TG-33, TG-77, SY22, SY35, SY77, AWM and AFM are trademarks of Yamaha Corporation, used only to describe compatibility. Not affiliated with or endorsed by Yamaha.
